Eco, Energy Efficient Glass
Ply Gem LoE glass does more than just lower energy bills. It delivers comfort, creates less condensation and protects valuables from sun damage far better than conventional clear glass. Plus, it meets specific solar and energy control needs for different climates and geographic regions nationwide.

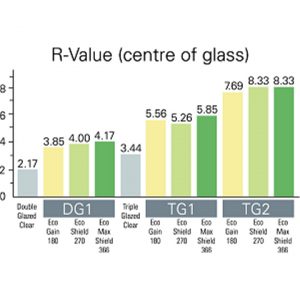

R-Value
The amount of heat retained by a window; the higher the number, the better the glass.
Solar Heat Gain Coefficient
the amount of solar radiation entering a house and registering as heat gain; the lower the number, the less heat gained.

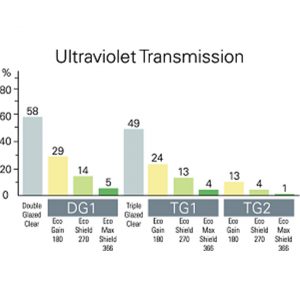

Ultraviolet Transmission
The total ultraviolet rays entering through a window, generally responsible for fading; the lower the number, the better the glass.

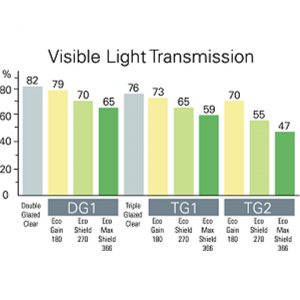

Visible Light Transmission
How much visible light enters through the glass; 100% = all light gets through, 0% = no light gets through.
GLAZING TYPES
Eco Gain180 High Solar Gain Glass
Eco Gain 180 provides excellent insulating capability by blocking heat loss to the outside and reflecting heat back into the room. It is ideal for passive solar applications as it allows the winter sun to pass into the home and provide “free heat.” It also blocks 76% of the sun’s harmful UV rays.
Eco Shield 270 Solar Control Glass
Eco Shield 270 is perfect for fighting the heat. Eco Shield 270 reduces solar heat gain by 50% or more compared to ordinary glass in the summer and keeps homes cozy by blocking heat loss in the winter. It blocks 86% of the sun’s UV rays yet allows light stream in due to its exceptional clarity.
Eco Max Shield 366 Ultimate Performance Glass
Eco Max Shield 366 provides the highest levels of year-round comfort and energy savings, making it the perfect glass no matter where you live. It sports an unprecedented three layers of silver which reduce solar gain, reflect furnace heat back into the room and let light stream in.
Neat™ Naturally Clean Glass
A titanium dioxide coating harnesses the power of the sun’s UV rays to loosen dirt so water can rinse it away, leaving windows virtually spotless. A silicone dioxide treatment makes glass smoother so water disperses evenly, sheets off and evaporates quickly, greatly reducing water spotting.
Preserve Protective Film
A clear factory-applied protective film attached on both inner and outer surfaces, ensuring glass surface is protected from damage, scratches, paint, and mud. Peels off in one smooth easy motion, taking all the accumulated dirt and labels with it, revealing spotless and undamaged glass.
Obscure and Tinted Glass
Obscure glass ensures privacy or a decorative effect while still allowing light to penetrate in. Tinted glass provides glare control.
Clear
Regular glass, for comparison
Pinhead
Economical glass provided excellent privacy
Rain
Highly textured provides privacy and style
Satin Etch
Excellent privacy, similar to sand blasted glass
Coloured Glass
Bronze
Green
